Max Effort HP70 and Torque Converter Combo (Durango, Jeep SRT, RAM)

Max Effort HP70 and Torque Converter Combo (Durango, Jeep SRT, RAM)

$8,540.00 USD
$0.00 USD $8,540.00 USD
Sale Sold out
Shipping calculated at checkout.
Core Charge
Input Shaft
Mounting Pads

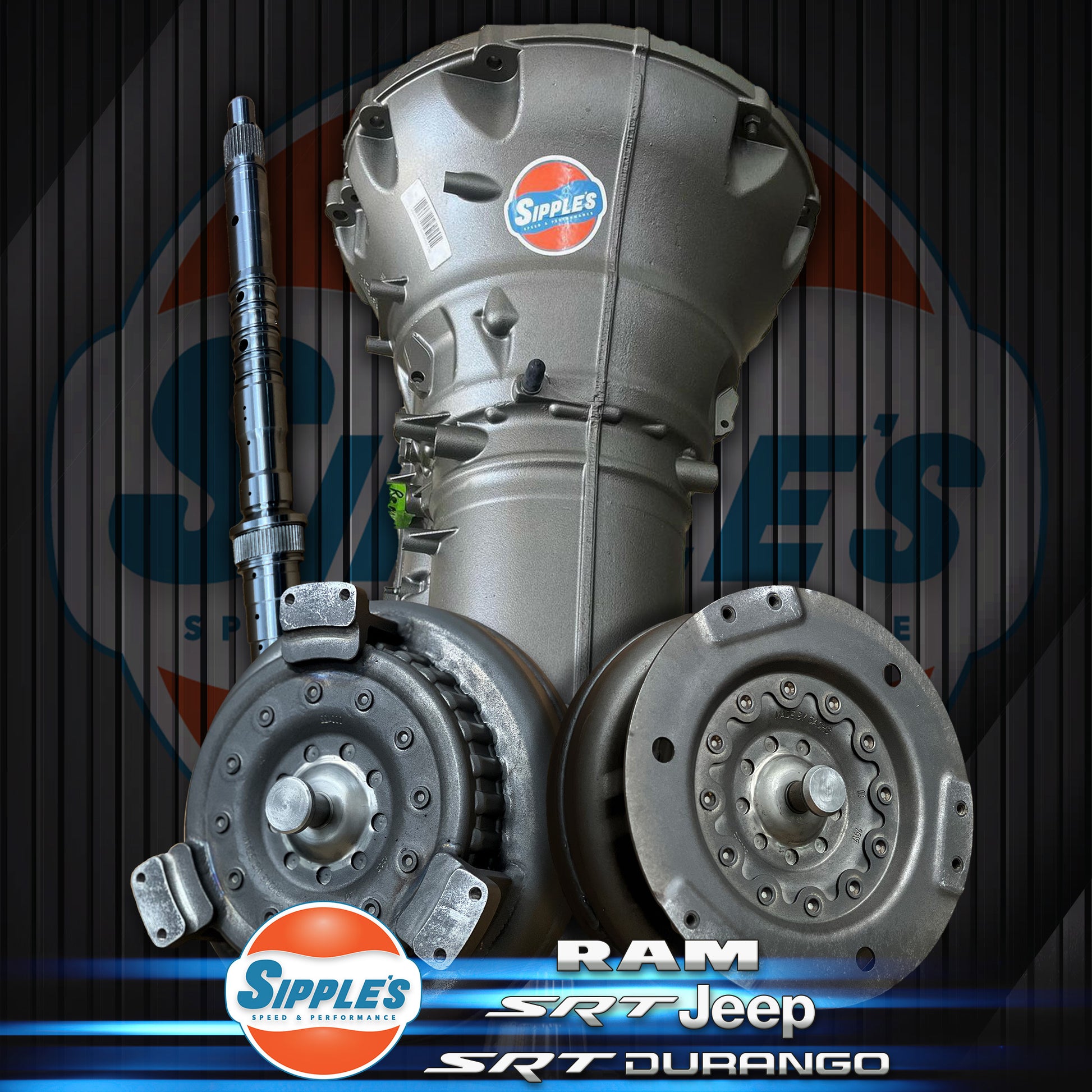

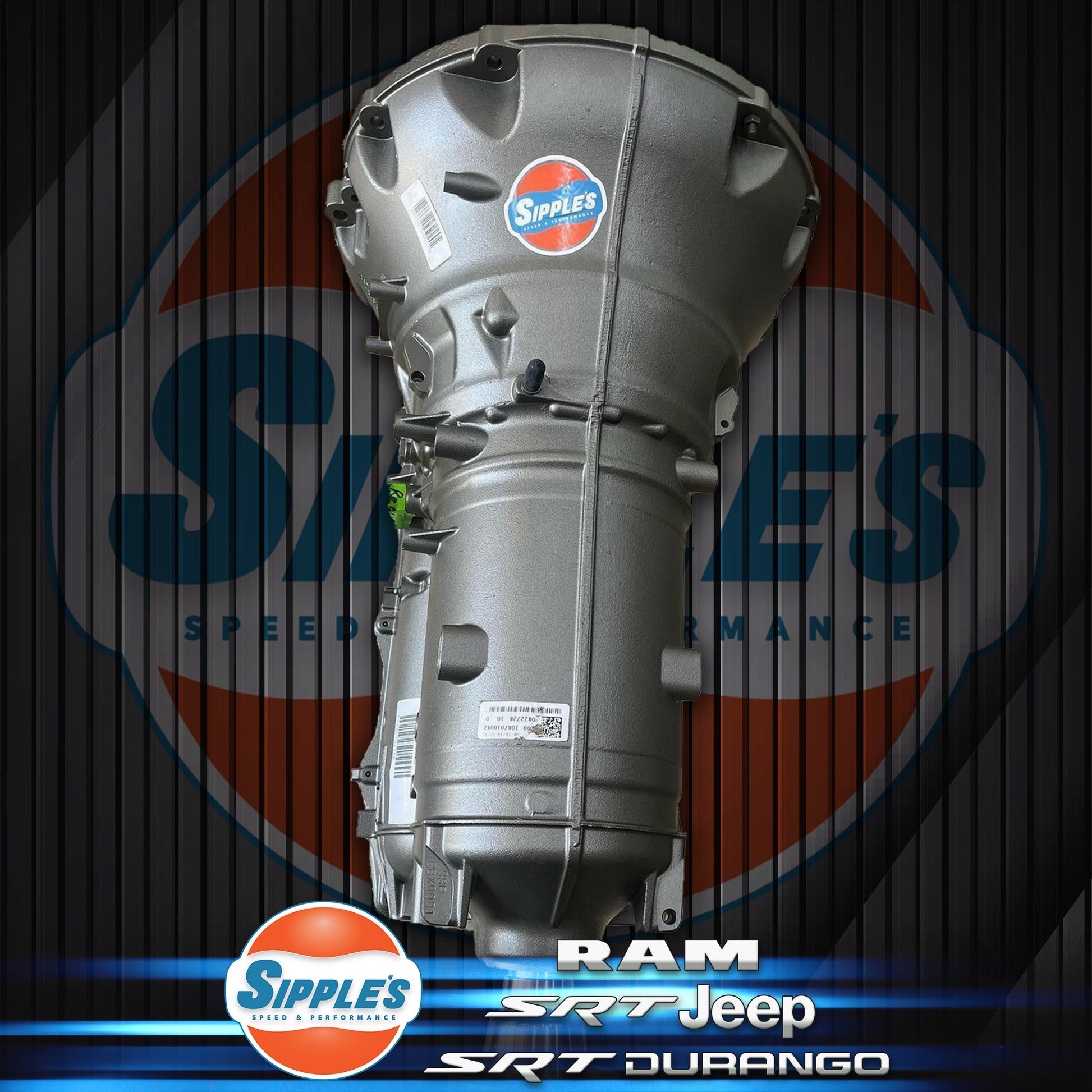

Sipple Speed and Performance Max Effort HP70 Transmission and Torque Converter Combo for RAM Trucks, Durango SRT8, and Jeep SRT8s.

We only offer one level of transmission the "Max Effort". These are the race proven, fully built transmissions. Billet E Drums, performance steels and frictions all assembled to SSP's precise specifications.

We don't just throw a bunch of clutches in and hope for the best. There is a reason Sipple's Max Effort Transmissions lead the lists online, and the winner's circle at the track.

Your Trans and 'Verter will arrive assembled, full of fluid, and ready to install. You'll also save over $300 on fluid and headaches.

HP70
(Durango, Jeep SRT, RAM)

Description

MAX EFFORT HP70 Build Service
All tolerances and specs set to MAX EFFORT standards.

  • Set Clutch & Hard Part Clearances
    • MAX EFFORT Specs
  • Bench Test Unit
  • Recalibrate Valve Body To MAX EFFORT Specs
  • Installed New Pan With Integrated Filter
  • Filled With Fluid For Plug And Play Install

Specs

  • Billet E-drum
  • Extra capacity performance frictions/steels
    • (A,C,E,D)
  • Upgraded stator bushing
  • Upgraded rear bearing
  • New seals & gaskets
  • New pan filter
  • New pump & chain
  • Valve body recalibration
  • Build new separator plate
  • New pump bolts
  • Proprietary modifications to input/output shafts
  • New output shaft nut

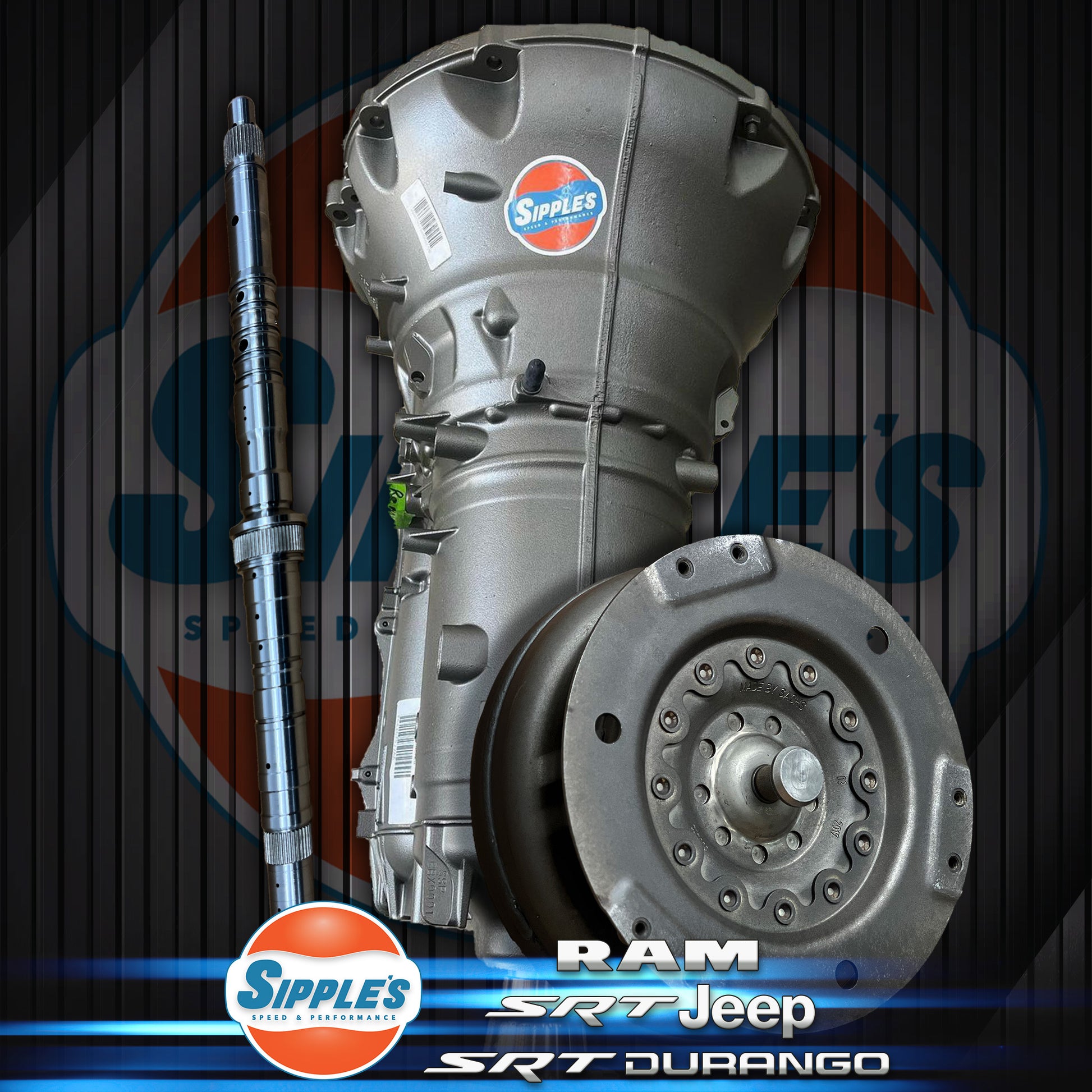

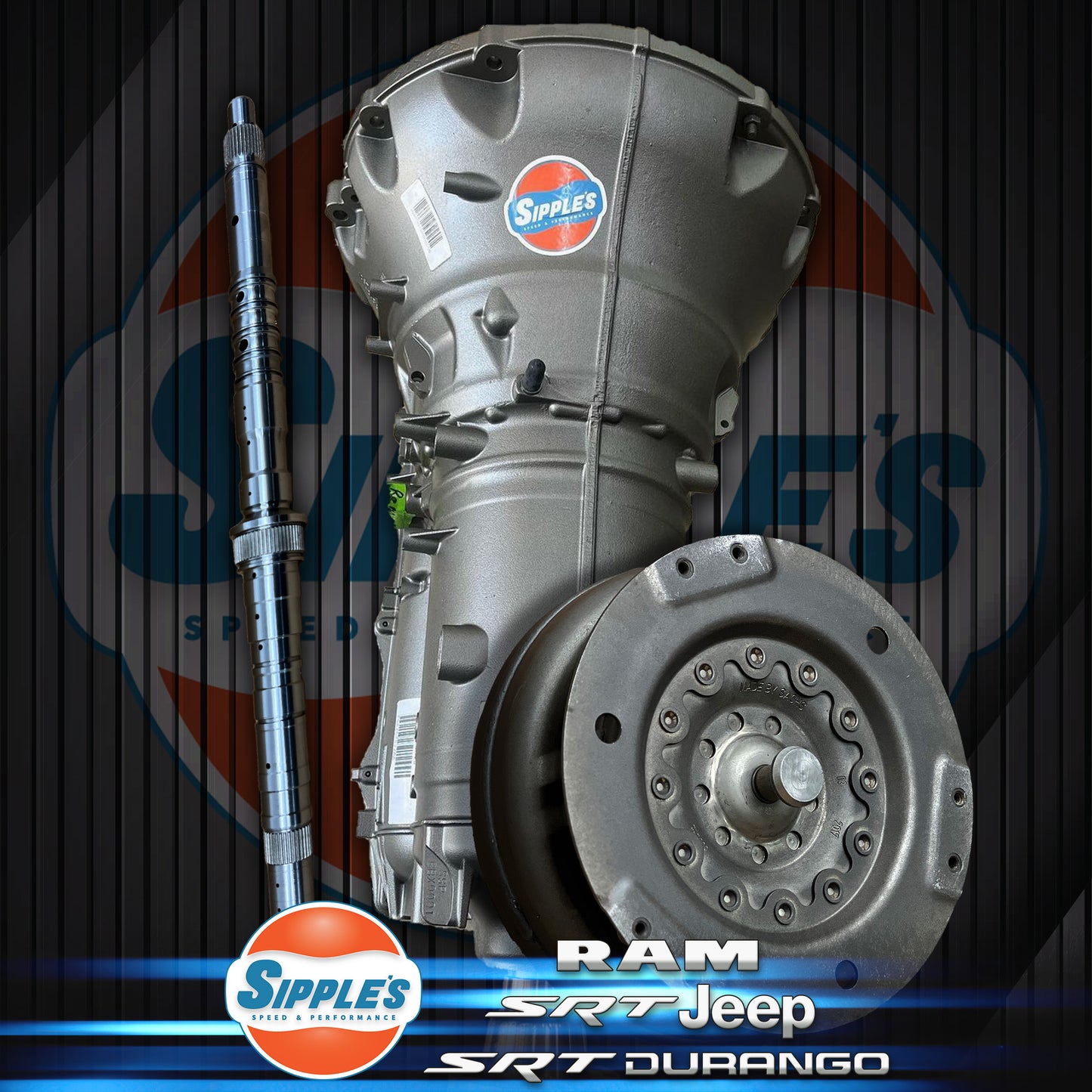

Billet Input Shaft

The billet input shaft is an add on to the Max Effort 8 speed. ($1,700)

We recommend this option for the following:
  • HP70/75 over 1000 wheel horsepower
  • HP90/95 over 1200 wheel horsepower

The billet input shaft is made with improvements over the OE shaft for oiling and fit. This input shaft is made of billet steel vs OE standard material.

The SSP billet shaft has been tested to 2100 HP so far with zero stress wear.

Vehicles

  • 2014-2018 Ram
  • 2014-2018 Jeep SRT WK2
  • 2014-2018 Durango SRT8


MAX EFFORT
8 Speed Torque Converter

Description

SSP Custom ZF 8 Speed Torque Converter

Specs

  • Billet stator
  • High performance frictions
  • Extra capacity
  • Performance bearing
  • tig welded

    Mounting Pad Options

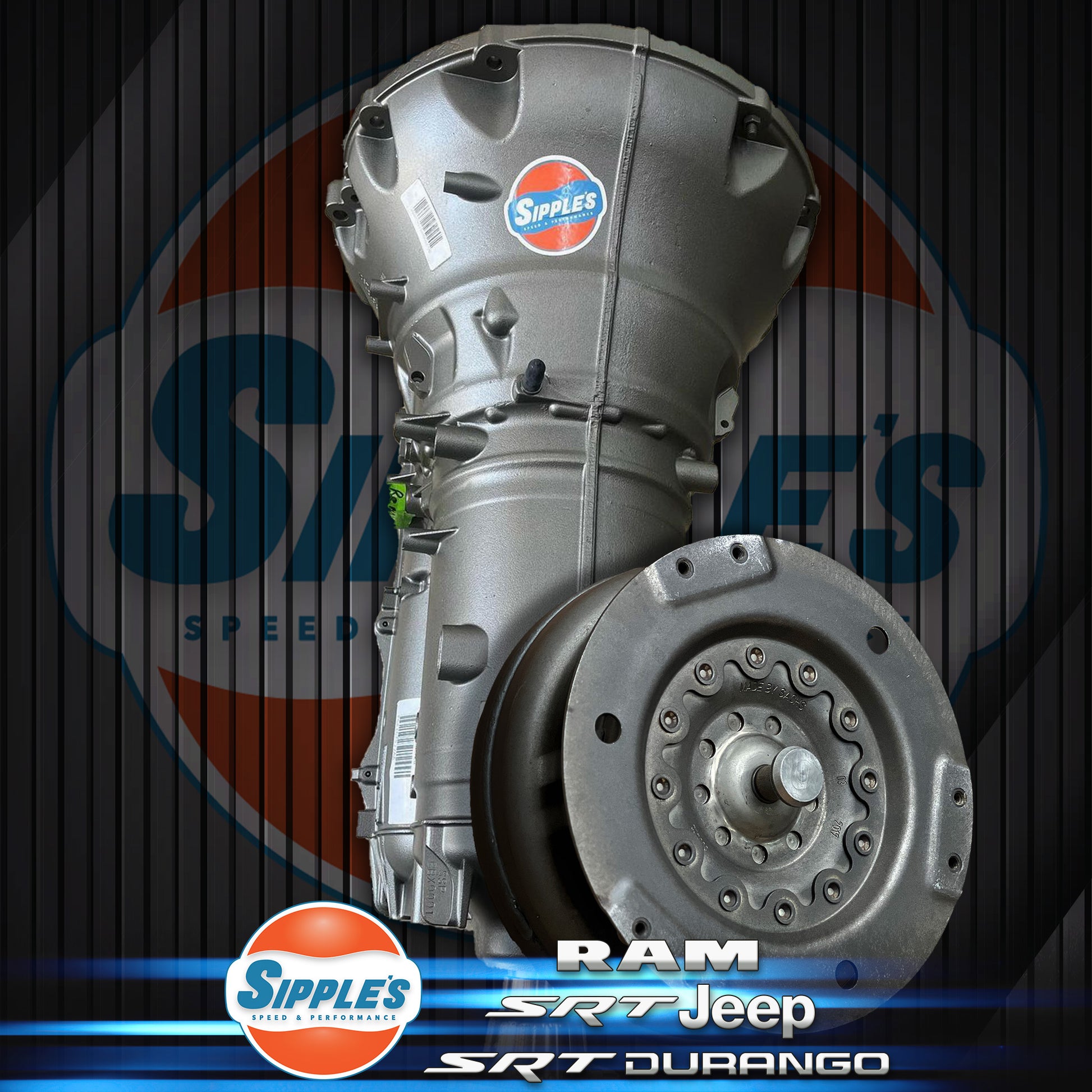

    • Stock Mounting Pads
    • Billet Mounting Pads (+$500 | 2 Week Lead Time)

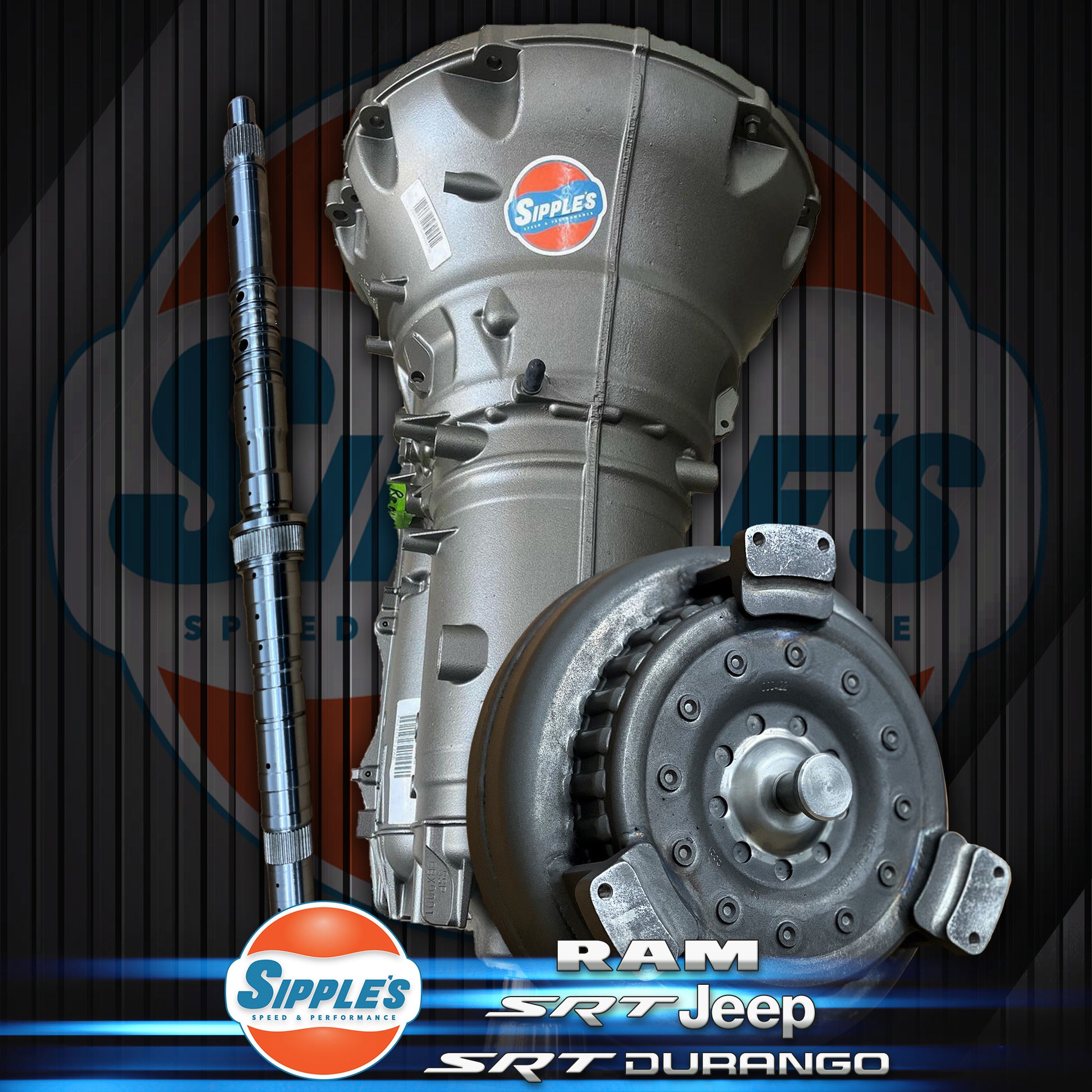

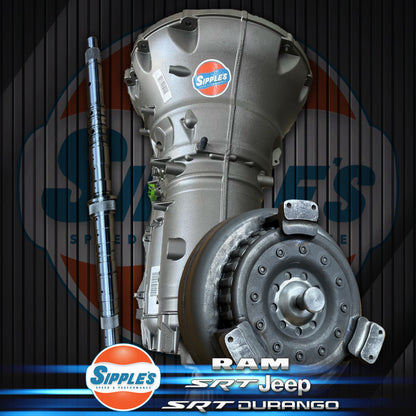

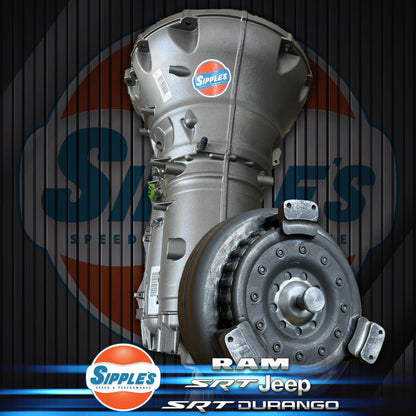

    Billet Mounting Pad Option
    As the power increases north of 1000 wheel HP the flexplate does just that, flexes to a point where the mounting flange on the factory converter cracks and breaks apart. This issue is becoming more common as these units age and power increases.

    The billet mounting pad was developed to mitigate this issue. The factory mounting plate is removed and the billet pads are TIG welded into place and then the converter is balanced to ensure smooth operation. Existing billet stator converters can be sent in to have the billet pads installed. Please email us for details.

    Stall Options

    HP70 Stall Options:

    • 2200
    • 2600
    • 3200
    • 4000 (turbo applications)
